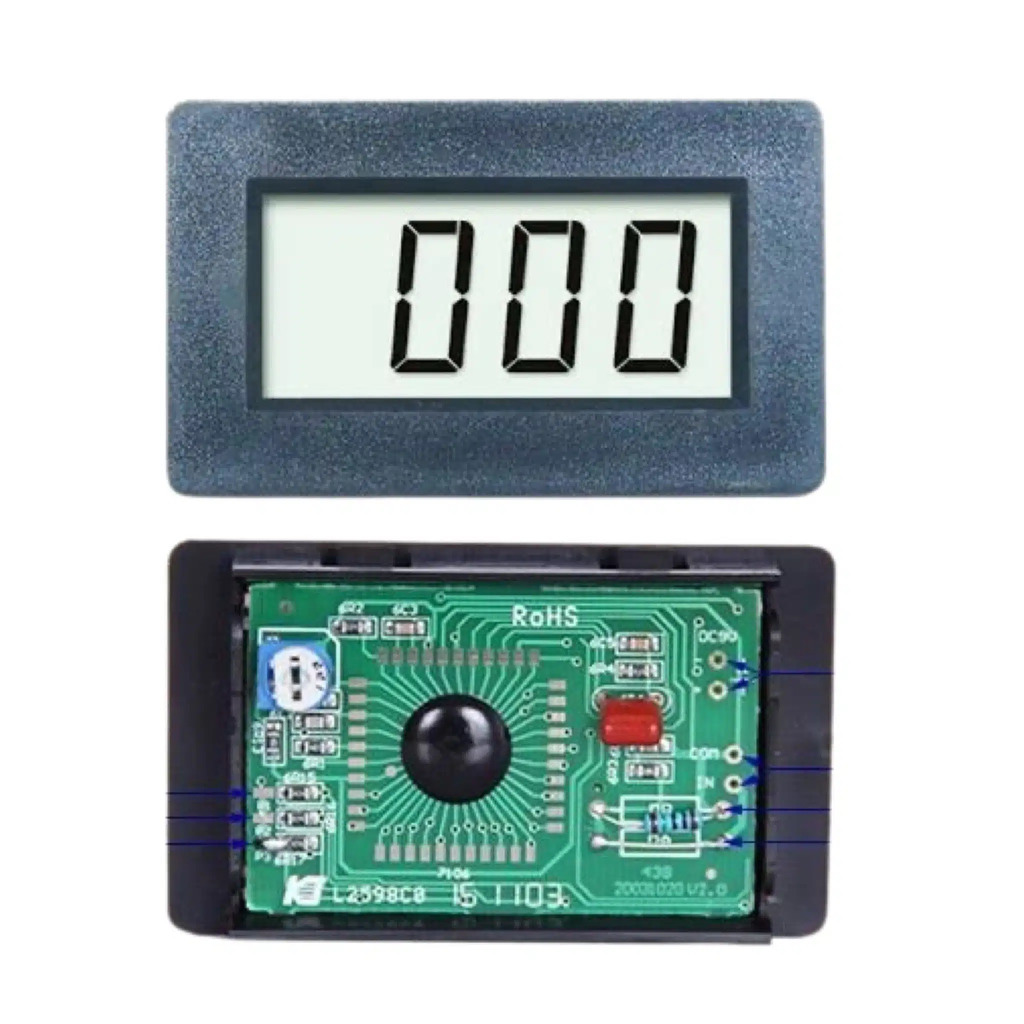

Digital Panel Meter

The Digital Panel Meter can handle a maximum input of 199.9mV DC and display up to 1999 counts (3-½ Digit) on an LCD display.
In case of over-range, it will indicate “1” on display.
The device can take 2-3 readings per second and has an input impedance of 1mA.
It requires a supply voltage of 8-12V DC and has a compact size of 68mm x 44mm.

Component/Feature	Specification
Size/Scale Diameter	6 inches (150 mm) or 7 inches (175 mm/178 mm)
Vernier Reading	1 minute of arc (30 seconds also common)
Main Scale	0-360° with divisions of (0.5 circ ) (150 mm or 175 mm circle)
Vernier Scale	Double ended vernier separated by (180 circ )
Collimator Lens	Achromatic, 178 mm focus, 32 mm clear aperture
Telescope Lens	Achromatic, 178 mm focus, 32 mm clear aperture
Eyepiece	Ramsden Type ((10 times ) or (15 times ) with cross-line graticule
Slit	Unilaterally adjustable, 6mm long
Fine Adjustment	Provided for both telescope and collimator (laterally and vertically)
Prism Table	Marked with lines; leveling screws & interchangeable clamp
Main Structure	Heavy cast metal with bright plated fittings (sometimes stainless steel scale)
Accessories	Prism holder, Grating holder, Watchmaker’s eyeglass, L-key, Hardwood case
